Azimut
Grande 27M
2017 – Present
Gallery
Specifications
Manufacturer Verified88 ft
Length Overall
28 kts
Max Speed
9500 L
Fuel Capacity
4
Cabins
2000 L
Fresh Water
88 ft
Length Overall
28 kts
Max Speed
9500 L
Fuel Capacity
4
Cabins
2000 L
Fresh Water
Vessel Dimensions
Beam
21.6 ft
Draft
6.3 ft
Beam
21.6 ft
Draft
6.3 ft
Beam
21.6 ft
Draft
6.3 ft
Displacement
93.0 t
Waterline Length
74.2 ft
Gross Tonnage
145 GT
Max Speed
28 kts
Cruising Speed
26 kts
Range
1085 nm
Range Note
10 knots
Engine Count
2
Engine Power
2× MAN V12-1900, 1900 HP
Hull Material
GRP
Superstructure
Carbon Fibre
Guests
8
Cabins
4
Cabin Breakdown
1 x Master 1 x VIP 1 x Double 1 x Twin
En-Suite Cabins
Yes
Crew
3
Crew Cabins
2
Heads
5 (Optional 6) guest, 2 crew
Fuel Capacity
9500 L
Fresh Water
2000 L
Black Water
850 L
Exterior Designer
Stefano Righini
Interior Designer
Achille Salvagni
Naval Architect
Azimut & Pierluigi Ausonio

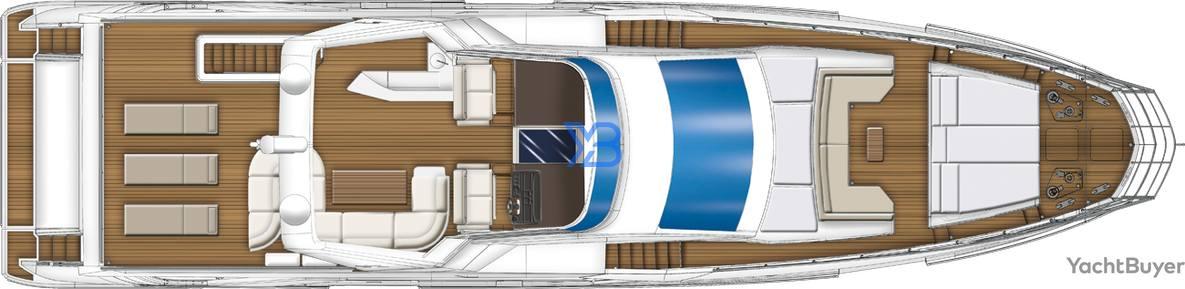

Deck Plans & Layouts
Propulsion & Systems
Mechanical & Systems
