Azimut

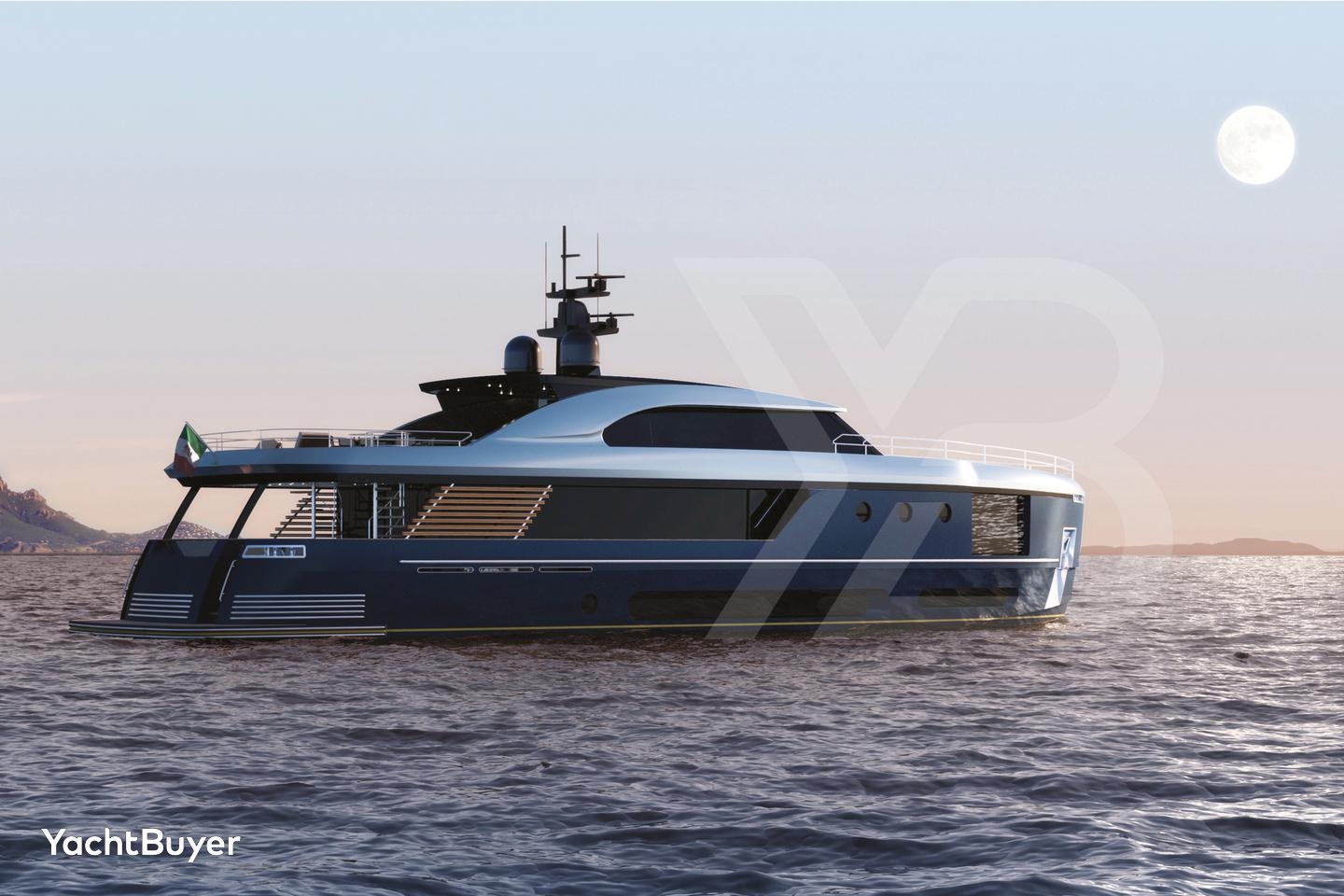

Magellano 30M
2022 – Present
Gallery
Specifications
Manufacturer Verified97 ft
Length Overall
24 kts
Max Speed
14500 L
Fuel Capacity
5
Cabins
2130 L
Fresh Water
97 ft
Length Overall
24 kts
Max Speed
14500 L
Fuel Capacity
5
Cabins
2130 L
Fresh Water
Vessel Dimensions
Beam
23.2 ft
Draft
6.7 ft
Beam
23.2 ft
Draft
6.7 ft
Beam
23.2 ft
Draft
6.7 ft
Displacement
136.0 t
Gross Tonnage
199 GT
Max Speed
24 kts
Cruising Speed
18 kts
Engine Count
2
Engine Power
2× MAN V12-1550, 1900 HP
Hull Material
GRP
Superstructure
GRP
Guests
10
Cabins
5
Cabin Breakdown
1 x Master 2 x VIP 2 x Twin
En-Suite Cabins
Yes
Crew
5
Crew Cabins
3
Heads
6 guest, 3 crew
Fuel Capacity
14500 L
Fresh Water
2130 L
Exterior Designer
Ken Freivokh
Interior Designer
De Cotiis Architects
Naval Architect
Azimut R&D Dept. & Pier Luigi Ausonio

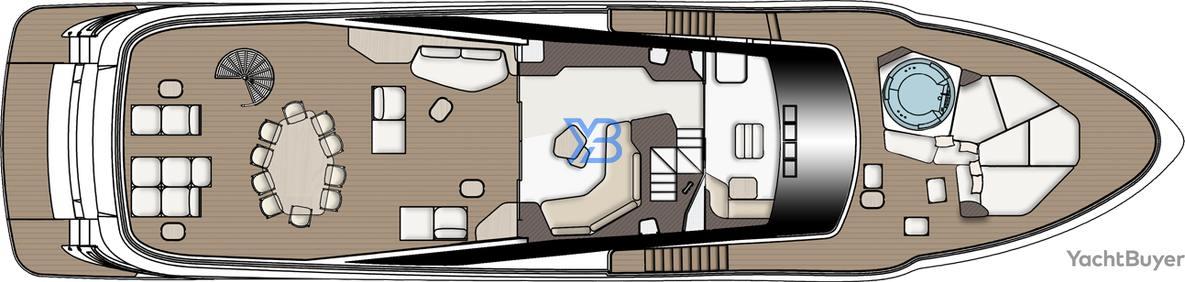

Deck Plans & Layouts
Propulsion & Systems
Mechanical & Systems
Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
