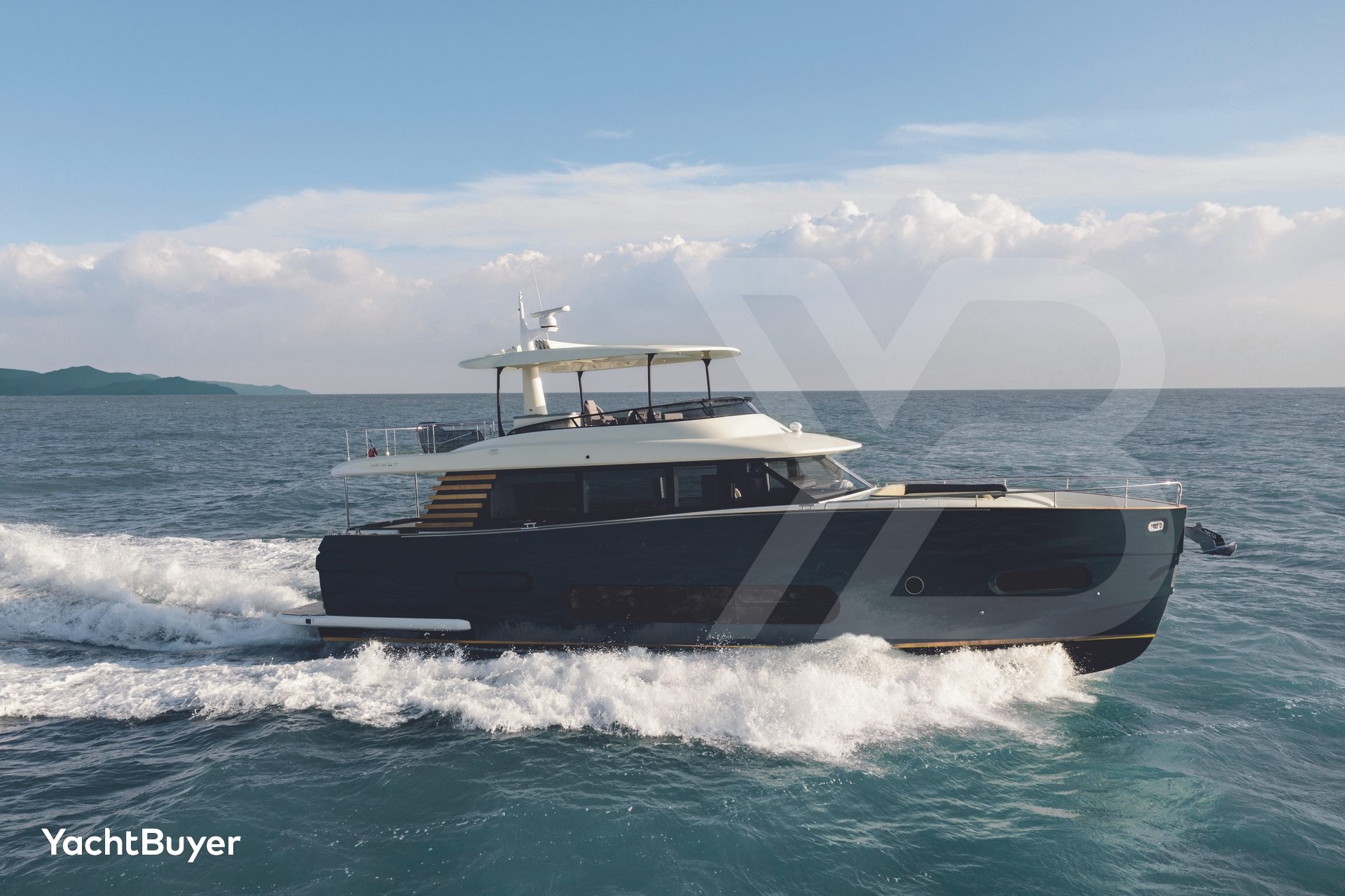

Azimut
Magellano 66
2015 – Present
Gallery
Specifications
Manufacturer Verified66 ft
Length Overall
24 kts
Max Speed
4500 L
Fuel Capacity
4
Cabins
1000 L
Fresh Water
66 ft
Length Overall
24 kts
Max Speed
4500 L
Fuel Capacity
4
Cabins
1000 L
Fresh Water
Vessel Dimensions
Beam
18.2 ft
Draft
5.5 ft
Beam
18.2 ft
Draft
5.5 ft
Beam
18.2 ft
Draft
5.5 ft
Displacement
46.4 t
Max Speed
24 kts
Cruising Speed
19 kts
Range
900 nm
Range Note
9 knots
Engine Count
2
Engine Power
2× MAN i6-850, 800 HP
Hull Material
GRP
Superstructure
GRP
Guests
8
Cabins
4
Crew
2
Crew Cabins
1
Heads
3 guest, 1 crew
Fuel Capacity
4500 L
Fresh Water
1000 L
Exterior Designer
Azimut & Cor D. Rover Yacht Design
Interior Designer
Azimut
Naval Architect
Azimut R&D Dept. & Pierluigi Ausonio

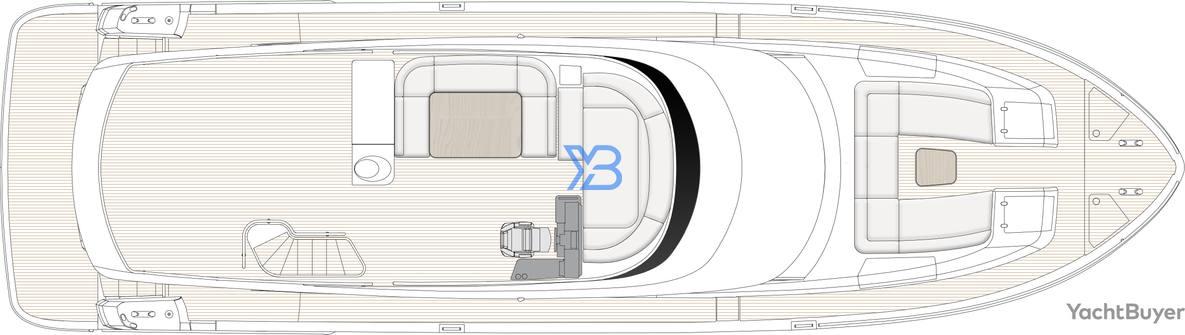

Deck Plans & Layouts
Propulsion & Systems
Mechanical & Systems
Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
