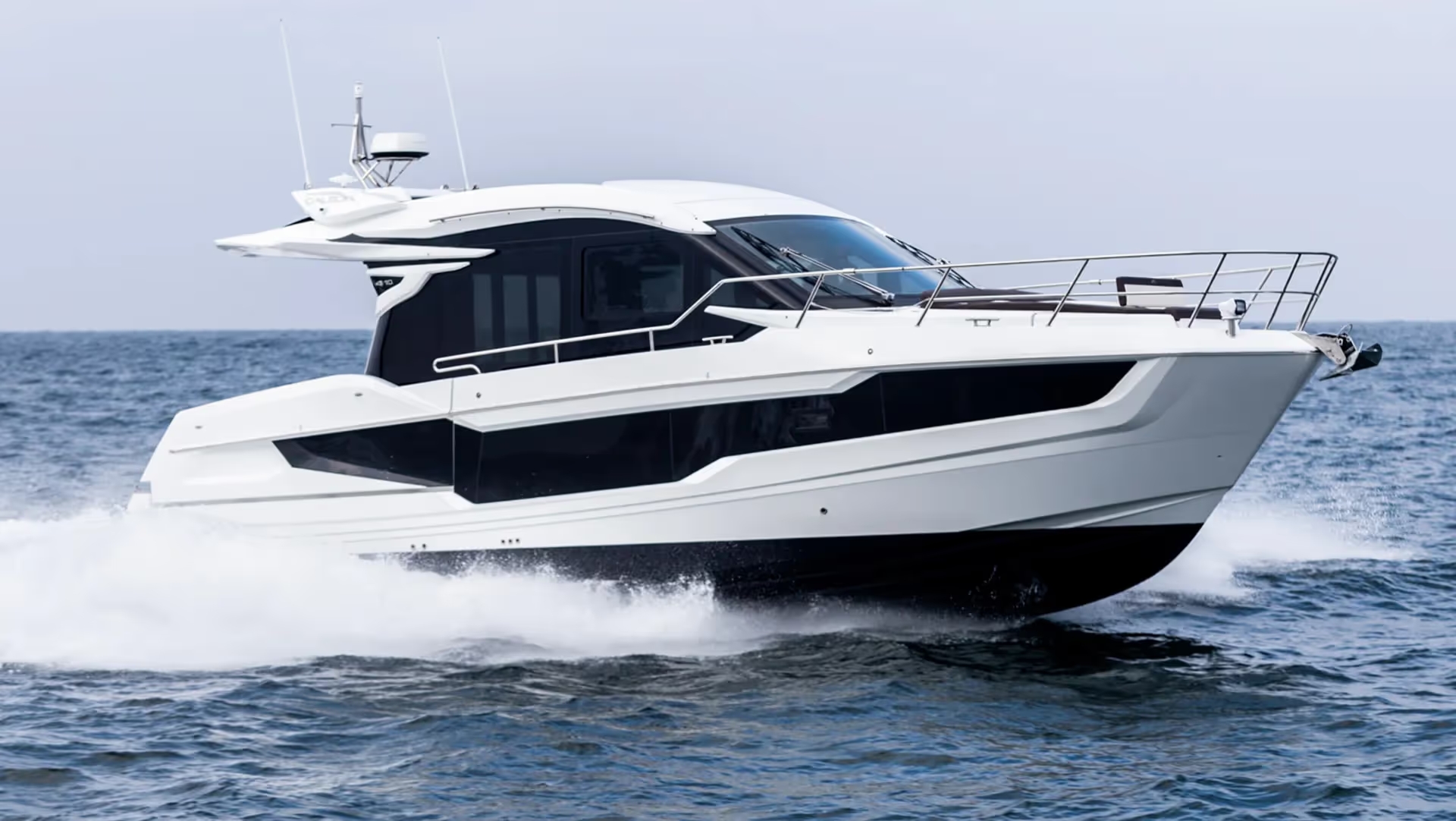

Galeon Yachts 410 HTC
29 photos

Galeon Yachts

410 HTC

2021 – Present

41ftLOA
8Guests
3Cabins
30ktsMax Kts

Specifications

Manufacturer Verified

41 ft

Length Overall

30 kts

Max Speed

1000 L

Fuel Capacity

3

Cabins

450 L

Fresh Water

Vessel Dimensions

WL41.0 ftLOA12.1 ftBeam3.9 ftDraft

Beam

12.1 ft

Draft

3.9 ft

Units:
Dimensions

Beam

12.1 ft

Draft

3.9 ft

Displacement

14.6 t

Performance

Max Speed

30 kts

Cruising Speed

25 kts

Range

162.7 nm

Range Note

19.9 knots

Propulsion

Engine Count

2

Engine Power

Twin Volvo Penta D6-440 diesel engines (440 HP/324 kW each)

Hull Material

Fiberglass

Superstructure

GRP

Accommodation

Guests

8

Cabins

3

Heads

2 guest, 0 crew

Tanks

Fuel Capacity

1000 L

Fresh Water

450 L

Black Water

150 L

Design Credits

Exterior Designer

Tony Castro Yacht Design

Interior Designer

Galeon

Naval Architect

Tony Castro Yacht Design

Deck Plans & Layouts

1×

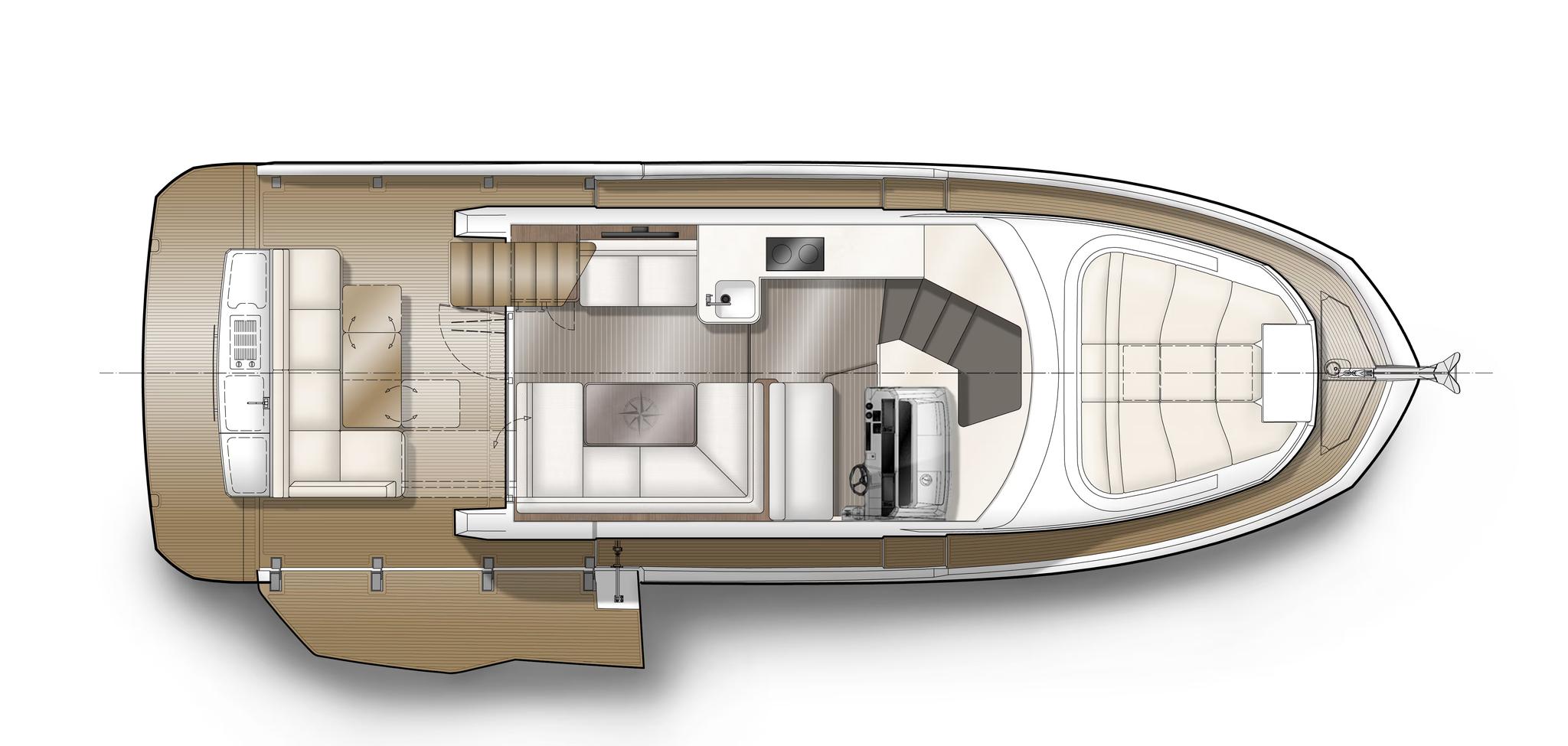

Deck plan

Propulsion & Systems

Volvo Penta D4-270

Volvo Penta D4-270

Twin engine configuration

SHAFTDIESELIMO Tier II
Displacement
3.7
Cylinders
4
Volvo Penta D6-440

Volvo Penta D6-440

Twin engine configuration

SHAFTDIESELEU RCD Stage II, IMO NOx Tier II, EPA Tier 3, China II, BSO II
Displacement
5.5
Cylinders
6

Equipment list not yet available for this model year.
