Galeon Yachts

420 Fly

2012 – 2018

43.83ftLOA
3Cabins
30ktsMax Kts

No all photos available yet.

Own this vessel? Share photos with the community.

Specifications

Manufacturer Verified

44 ft

Length Overall

30 kts

Max Speed

1100 L

Fuel Capacity

3

Cabins

450 L

Fresh Water

Vessel Dimensions

WL43.8 ftLOA13.6 ftBeam6.2 ftDraft

Beam

13.6 ft

Draft

6.2 ft

Units:
Dimensions

Beam

13.6 ft

Draft

6.2 ft

Displacement

14.8 t

Performance

Max Speed

30 kts

Cruising Speed

28 kts

Propulsion

Engine Count

2

Engine Power

Twin Volvo Penta D6-435 diesel engines (2 x 435 hp / 320 kW)

Hull Material

Fiberglass

Accommodation

Cabins

3

Heads

2 guest, 0 crew

Tanks

Fuel Capacity

1100 L

Fresh Water

450 L

Black Water

150 L

Deck Plans & Layouts

Deck plans for this model are not yet in our database.

Know this vessel? Help us build the knowledge base.

Propulsion & Systems

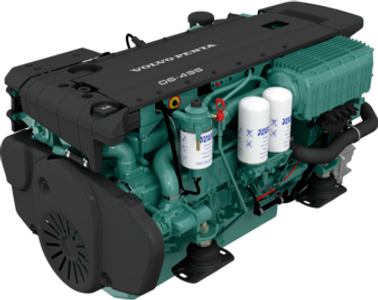

Volvo Penta D6-435

Volvo Penta D6-435

Twin engine configuration

SHAFTDIESEL-
Displacement
5.5
Cylinders
6

Navigation & Electronics

Fire System MonitorCompassEngine ignition panel with electronic key fobsSwitchesVolvo Volvo 7" digital Electronic Vessel Control (EVC) PanelSteering wheel, exclusive GaleonStream control

Safety

Bilge pumps, automatic electric - engine roomAutomatic / Manual Fire Extinguishing systemBilge pumps, automatic electric (2) - engine room and starboard side cabinHigh water alarmSound insulation

Entertainment & AV

Fusion Stereo, Fusion 12V AM/FM with bluetooth module and two speakersTV, 24" Samsung Smart LED - bow owner's cabinTV, Electric Sliding 32" Samsung Smart LED with Blu-ray player - salon

Galley & Appliances

Cooktop, 240V two-burner inductionSink, twin stainless steel with chrome faucet and corian cover

Climate Control

Air Conditioning System, Dometic MarineAir (44,000 BTU) - 240V

Mechanical & Systems

Trim tabs, hydraulic with indicatorsPropellers (Bronze)Propeller Shafts (Stainless Steel)Electronic Vessel Control SystemExhaust vetHydraulic steering systemRudder (bronze)Volvo Straight Shaft Transmission

Other

Level indicator and pump switch in starboardBlack Water Waste SystemExtractor FanLadder, stainless steelCarbon Monoxide DetectorFresh Water System with air release and expandable inletWater pump, automatic with filterWater heater, 11 gal / 40 LDockside / Shore Water ConnectionLevel indicator in starboard side cockpit lockerGrey Water Waste SystemWaste Tank, stainless steel, with odor filterShower Sumps (2) with automatic pumpCommon Drain system

Generator

Fischer Panda Generator, Fischer Panda 12 kW diesel

Watermaker

Watermaker system

Stabilizer

Trim tabs, hydraulic with indicators

Anchor & Windlass

Anchor rollerReversible electric anchor winchGalvanized anchor, 44 lb (20 kg) with 197 ft (60 m) of 5/16" (8 mm) galvanized chain with chain protection

Bow Thruster

Bow Thruster (electric)

Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
