Galeon Yachts 450 HTC
28 photos

Galeon Yachts

450 HTC

2023 – Present

45.92ftLOA
6Guests
3Cabins
30ktsMax Kts

Specifications

Manufacturer Verified

46 ft

Length Overall

30 kts

Max Speed

1700 L

Fuel Capacity

3

Cabins

425 L

Fresh Water

Vessel Dimensions

WL45.9 ftLOA13.8 ftBeam4.3 ftDraft

Beam

13.8 ft

Draft

4.3 ft

Units:
Dimensions

Beam

13.8 ft

Draft

4.3 ft

Displacement

18.7 t

Performance

Max Speed

30 kts

Cruising Speed

25 kts

Range

397 nm

Range Note

9.1 knots

Propulsion

Engine Count

2

Engine Power

Twin Volvo Penta D6-480

Hull Material

Fiberglass

Superstructure

GRP

Accommodation

Guests

6

Cabins

3

Heads

2 guest, 0 crew

Tanks

Fuel Capacity

1700 L

Fresh Water

425 L

Black Water

130 L

Design Credits

Exterior Designer

Tony Castro Yacht Design & Galeon

Interior Designer

Tony Castro Yacht Design

Naval Architect

Tony Castro Yacht Design & Galeon

Deck Plans & Layouts

1×

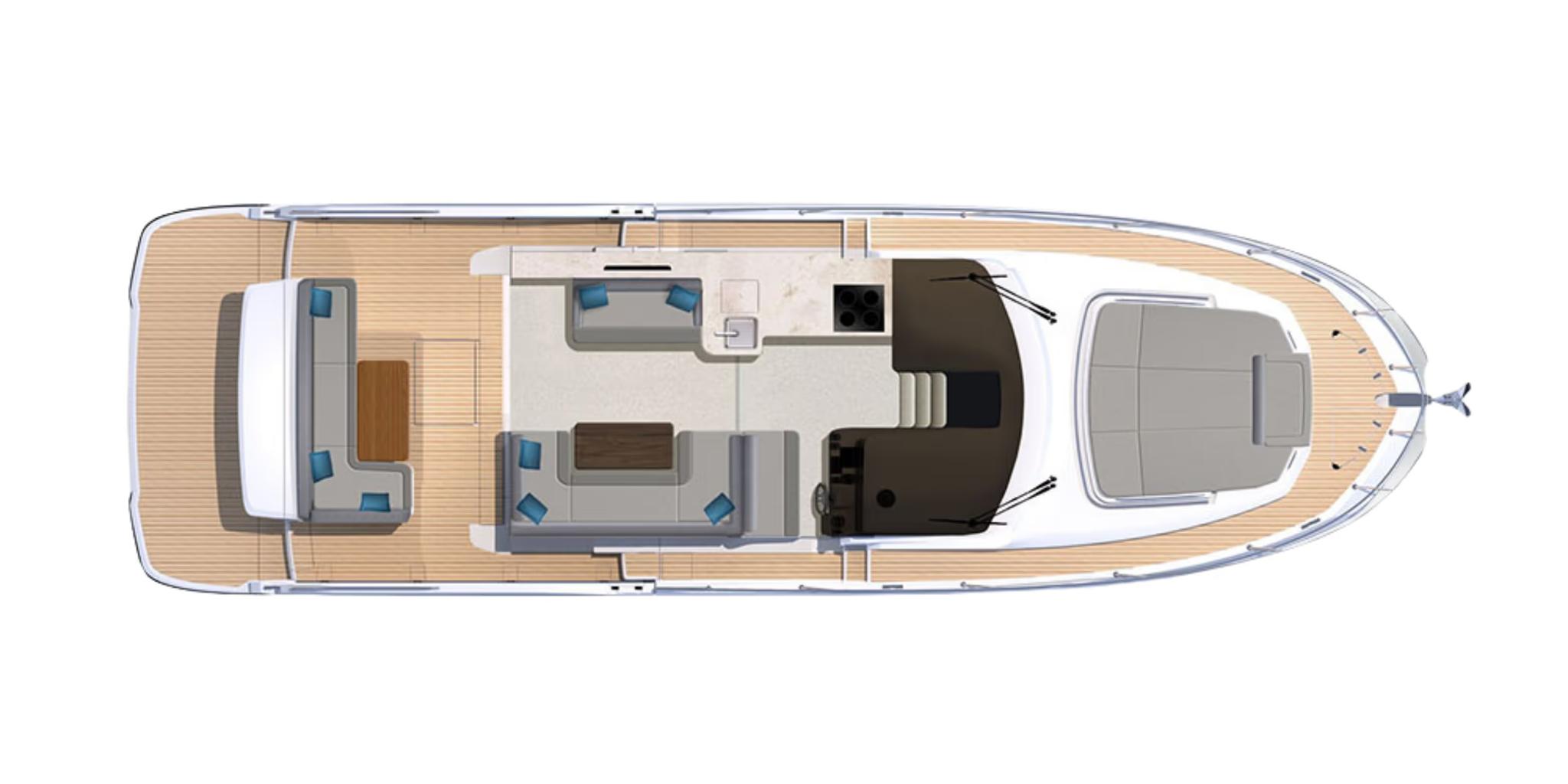

Deck plan

Propulsion & Systems

Volvo Penta D6-480

Volvo Penta D6-480

Twin engine configuration

SHAFTDIESELIMO NOx Tier II
Displacement
5.5
Cylinders
6

Navigation & Electronics

Electronic Vessel Control SystemRaymarine transducer B60 and digital radar Quantum Q24C 18Raymarine Chartplotter/FF 1x Axiom 12+ RV-USRaymarine Chartplotter 1x Axiom 12Raymarine autopilot Evolution EV-1Raymarine VHF Ray91 AIS and VHF antenna

Tender & Toys

Swim platform extended teak decking with stainless steel re-boarding ladder

Safety

Automatic/manual fire extinguishing system

Entertainment & AV

Stereo, Fusion 12V AM/FM with bluetooth

Galley & Appliances

Dual stainless steel sink with chrome faucetRefrigerator, 12V with freezer compartment (4.6 cu ft/130 L)Cooktop, 240V two-burner induction

Climate Control

Air Conditioning System, Condaria, 67000 BTU

Mechanical & Systems

NIBRAL PropellersStraight shaft with rudder

Other

Shore power, 240V/50A with 50 ft cordBilge pumps, automatic electric (2) in engine roomHydraulic steering system with trim tabs and indicators

Generator

Fischer Panda 12 kW diesel

Watermaker

Water heater, 1 gallon per 40 liters

Anchor & Windlass

Reversible electric anchor winchGalvanized anchor 44 LB (20 KG) with 197 ft chain

Bow Thruster

Bow thruster, electric

Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
