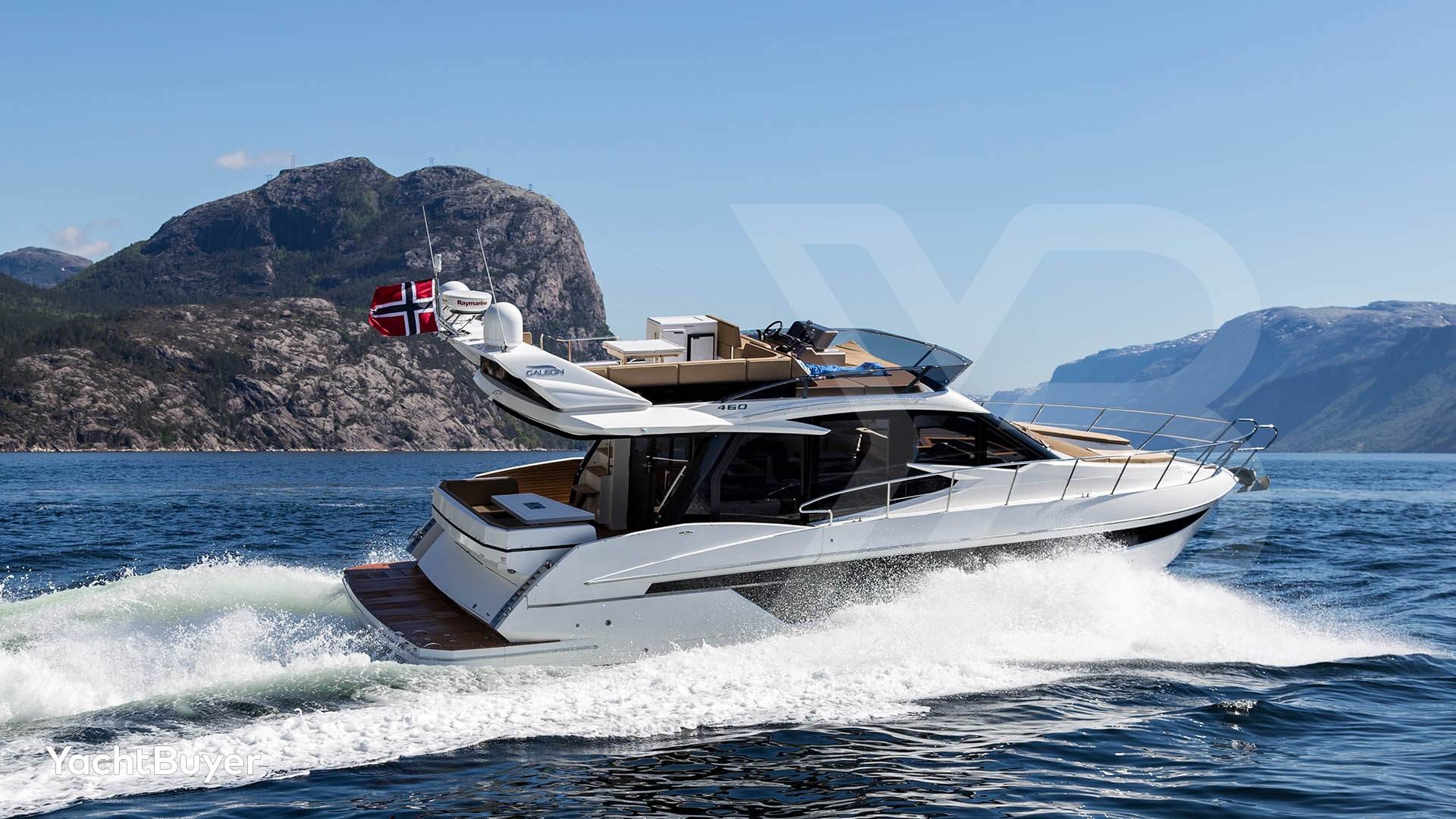

Galeon Yachts 460 Fly
5 photos

Galeon Yachts

460 Fly

2016 – Present

47.1ftLOA
6Guests
3Cabins
29ktsMax Kts

Specifications

Manufacturer Verified

47 ft

Length Overall

29 kts

Max Speed

1500 L

Fuel Capacity

3

Cabins

850 L

Fresh Water

Vessel Dimensions

WL47.1 ftLOA14.3 ftBeam4.3 ftDraft

Beam

14.3 ft

Draft

4.3 ft

Units:
Dimensions

Beam

14.3 ft

Draft

4.3 ft

Displacement

20.6 t

Waterline Length

15.8 ft

Performance

Max Speed

29 kts

Cruising Speed

24 kts

Range

993 nm

Range Note

4.4 knots

Propulsion

Engine Count

2

Engine Power

Twin Volvo Penta 08-600 diesel (2x 600 hp / 448 kW)

Hull Material

Fiberglass

Superstructure

GRP

Accommodation

Guests

6

Cabins

3

Heads

2 guest, 0 crew

Tanks

Fuel Capacity

1500 L

Fresh Water

850 L

Black Water

200 L

Design Credits

Exterior Designer

Tony Castro Yacht Design

Interior Designer

Galeon

Naval Architect

Tony Castro Yacht Design

Deck Plans & Layouts

1×

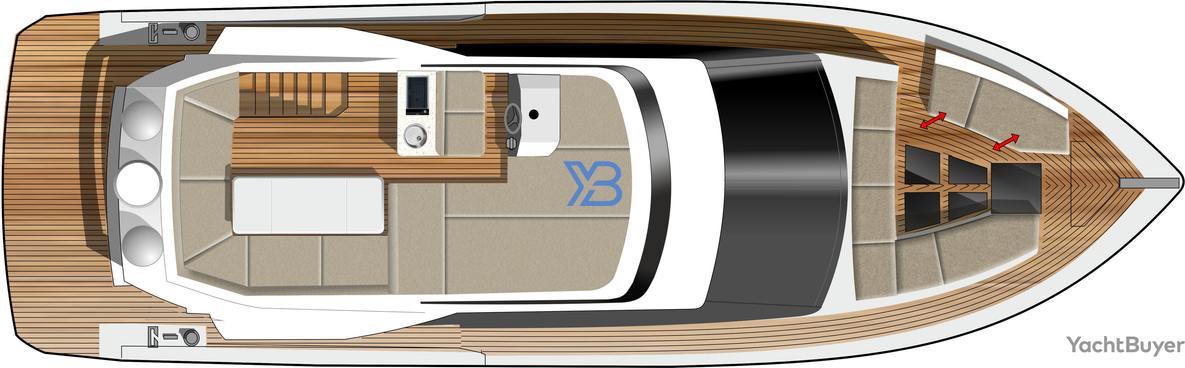

Deck plan

Propulsion & Systems

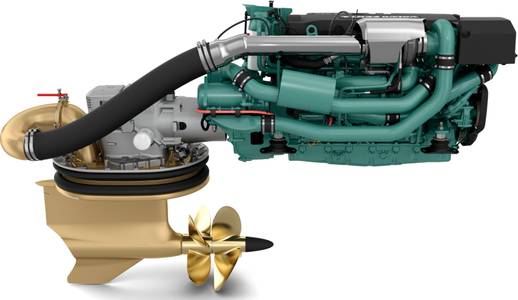

Volvo Penta D11-IPS800

Volvo Penta D11-IPS800

Twin engine configuration

PODDIESELChina II, EPA Tier 3, IMO NOx Tier II
Displacement
7.7
Cylinders
6
Volvo Penta D8-550

Volvo Penta D8-550

Twin engine configuration

SHAFTDIESELEPA Tier 3, IMO Tier II, China II, EU RCD
Displacement
7.7
Cylinders
6

Navigation & Electronics

Fusion Fusion 12V AM/FM Stereo with BluetoothRaymarine Raymarine Digital 4.0 kW Radarome RadarRaymarine Raymarine AutopilotRaymarine Raymaritne Chartplotter & Fish FinderRaymarine Raymarine Sonar TransducerRaymarine Raymarine VHF Radio with AISSamsung Samsung 32 inch Electric Sliding Smart LED TV with BluraySamsung Samsung 24 inch Smart LED TVVolvo 7' Digital Electronic Vessel Control PanelEngine Start Panel with Electronic KeyHelm Station CompassHelm Seat with Doublewide Wood Footrest

Tender & Toys

880 lbs / 300 kg capacity Hydraulic Swim Platform

Safety

Fire System MonitorFire System with Extinguishing SystemBilge Pumps×2High Water AlarmHigh Water Bilge AlertCarbon Monoxide Detectors

Entertainment & AV

Fiberglass Arch with Folding Stainless Steel Radar MastSpeakers×2

Galley & Appliances

240V Microwave240V drawer RefrigeratorSub-counter freezer compartment (4.8 ft³ / 135L) RefrigeratorTwo-burner induction 240V CooktopWooden FlooringExtractor Fan with Overhead LED LightingCorilian Worktop with Serving ShelfSink with Twin Stainless Steel Faucet

Climate Control

Dometic Chilled water (54,000 BTU) 240V

Mechanical & Systems

Bronze PropellersStainless Steel Propeller ShaftsVolvo Penta 08-600×2Volvo V-Drive Transmission

Other

16 gal / 60 L Water Heater24V with filter Water Pump316 Stainless Steel Fuel Tanks×2Stainless Steel Vented Water TankStainless Steel with auto filter Waste TankDual Lever Control with Electronic Vessel ControlWindshield, Expansive Deckhouse with Bonded Tempered and Tinted GlassWindshield Defroster with Synchronized Twin WipersInterior Lighting, Accent LEDExterior Lighting, Overhead LEDVessel Control System - ElectronicTrim Tab Control Panel with Hydraulic IndicatorsRudder IndicatorAlarm High Water and BilgeSteering Wheel, Exclusive GaleonTrim Tabs, HydraulicTrim Tab GaugeGrey Water Waste System with Shower SumpBlack Water Waste SystemWaste Pump, Electric

Generator

Fischer Panda 12 kW diesel with sound shield

Watermaker

Water Maker

Communication

VHF Radio with Automatic Identification System

Anchor & Windlass

Electric Anchor Winch with Helm Station and Foot SwitchFiberglass Deck Hatch with Self-Draining Chain LockerAnchor Roller with Galvanized Chain

Bow Thruster

Electric Bow Thruster

Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
