Galeon Yachts 470 SKY
27 photos

Galeon Yachts

470 SKY

2012 – 2019

48.26ftLOA
6Guests
2Cabins
25ktsMax Kts

Specifications

Manufacturer Verified

48 ft

Length Overall

25 kts

Max Speed

1500 L

Fuel Capacity

2

Cabins

400 L

Fresh Water

Vessel Dimensions

WL48.3 ftLOA13.6 ftBeam3.6 ftDraft

Beam

13.6 ft

Draft

3.6 ft

Units:
Dimensions

Beam

13.6 ft

Draft

3.6 ft

Displacement

32.5 t

Gross Tonnage

47.5 GT

Performance

Max Speed

25 kts

Cruising Speed

20 kts

Range

630 nm

Range Note

4.4 knots

Propulsion

Engine Count

2

Engine Power

2x 435 HP

Hull Material

GRP

Superstructure

GRP

Accommodation

Guests

6

Cabins

2

Crew

2

Crew Cabins

1

Heads

2 guest, 0 crew

Tanks

Fuel Capacity

1500 L

Fresh Water

400 L

Black Water

200 L

Design Credits

Exterior Designer

Galeon Design Studio

Interior Designer

Galeon Design Studio

Naval Architect

Galeon Design Studio

Deck Plans & Layouts

1×

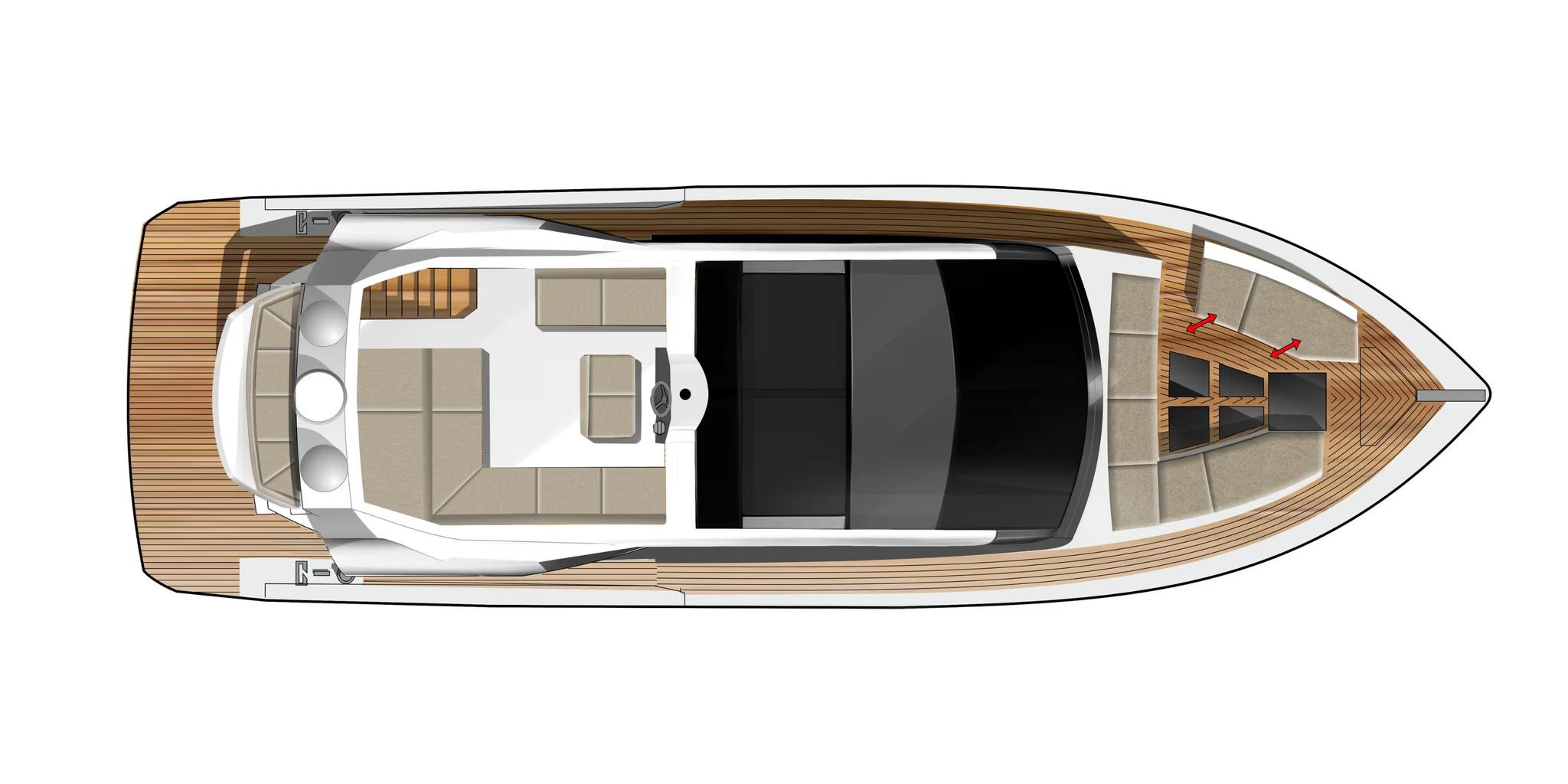

Deck plan

Propulsion & Systems

Volvo Penta D8-600

Volvo Penta D8-600

Twin engine configuration

SHAFTDIESELIMO Tier II
Displacement
7.7
Cylinders
6
Volvo Penta D8-550

Volvo Penta D8-550

Twin engine configuration

SHAFTDIESELEPA Tier 3, IMO Tier II, China II, EU RCD
Displacement
7.7
Cylinders
6

Navigation & Electronics

Raymarine Axiom 12+ RV-USRaymarine Evolution DBW with 2x P7ORSRaymarine Raymarine VHF with AISVolvo Volvo 7" Electronic Vessel Control (EVC) panelHelm station main with controls and displays

Safety

Automatic manual fix extinguishing system

Entertainment & AV

Speakers (2)×2

Galley & Appliances

Galley with cooktop (240V two-burner induction)Refrigerator 240V under-counter with freezerMicrowave 120V

Climate Control

Dometic Air Conditioning System, Dometic Chilled water

Other

WatermakerWater heater 16 GAL/80 LBilge pumps, automatic electric×2Extractor fans×2

Generator

Fischer Panda 12 kW

Communication

Synchronised twin windscreen wipers with front window washing system

Anchor & Windlass

Electric anchor winch with helm station

Bow Thruster

Bow thruster, electric

Stern Thruster

Stern thruster, electric

Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
