Galeon Yachts 500 FLY
39 photos

Galeon Yachts

500 FLY

2015 – Present

53.2ftLOA
6Guests
3Cabins
30ktsMax Kts

Specifications

Manufacturer Verified

53 ft

Length Overall

30 kts

Max Speed

1800 L

Fuel Capacity

3

Cabins

650 L

Fresh Water

Vessel Dimensions

WL53.2 ftLOA14.5 ftBeam4.6 ftDraft

Beam

14.5 ft

Draft

4.6 ft

Units:
Dimensions

Beam

14.5 ft

Draft

4.6 ft

Displacement

26.5 t

Performance

Max Speed

30 kts

Cruising Speed

25 kts

Range

484.8 nm

Range Note

8.3 knots

Propulsion

Engine Count

2

Engine Power

Twin Volvo Penta D11-670 (IT-670 hp = 493 kw)

Hull Material

Fiberglass

Superstructure

GRP

Accommodation

Guests

6

Cabins

3

Crew

2

Heads

2 guest, 1 crew

Tanks

Fuel Capacity

1800 L

Fresh Water

650 L

Black Water

240 L

Design Credits

Exterior Designer

Tony Castro Yacht Design

Interior Designer

Galeon

Naval Architect

Tony Castro Yacht Design

Deck Plans & Layouts

Deck plans for this model are not yet in our database.

Know this vessel? Help us build the knowledge base.

Propulsion & Systems

Volvo Penta D8-600

Volvo Penta D8-600

Twin engine configuration

SHAFTDIESELIMO Tier II
Displacement
7.7
Cylinders
6

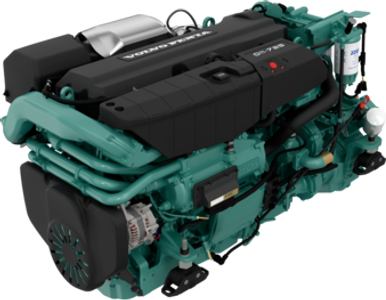

Volvo Penta D11-725

Volvo Penta D11-725

Twin engine configuration

SHAFTDIESELIMO Tier II
Displacement
10.8
Cylinders
6
Volvo Penta D11-670

Volvo Penta D11-670

Twin engine configuration

SHAFTDIESELIMO NOx/EU Stage II/EPA Tier 3
Cylinders
6

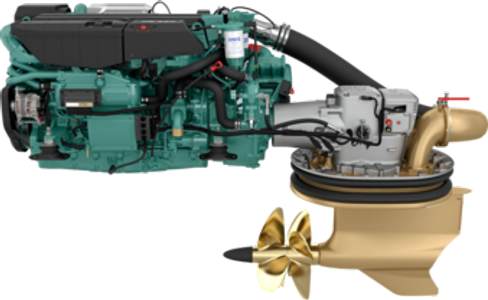

Volvo Penta D11-IPS950

Volvo Penta D11-IPS950

Twin engine configuration

PODDIESELEPA Tier 3, EU RCD Stage II, IMO NOx Tier II, China II
Displacement
10.8
Cylinders
6

Navigation & Electronics

CompassDC Main Panel SwitchboardShore Power 240V/50A with 50 ft CordAC Electrical System 240VCircuit BreakersBattery Charger/ConverterDC Electrical System 24V with BatteriesVolvo Electronic Vessel Control (EVC) PanelCupholders×3Station Instruments and ControlsVolvo 7 Digital Electronic Vessel Control (EVC) Panel

Safety

Extractor Fans×2Automatic/Manual Fire Extinguishing SystemBilge Pumps, Automatic Electric×2Bilge Pumps, High Water AlarmCommon Drain SystemCarbon Monoxide Detector×3

Entertainment & AV

Fusion Stereo Fusion 12V AM/FM with Bluetooth ModuleSpeakers×6

Galley & Appliances

Outlets 120V GFI Protected×2Refrigerator 240V Drawer (2.3 ft³/65 L)Refrigerator 240V Under Counter with Freezer Compartment (4.6 ft³/130 L)Cooktop 240V Two-Burner InductionCorian Worktop with Serving ShelfExtractor Fan OverheadMicrowave 120V

Climate Control

Condaria Air Conditioning System Condaria Chilled Water (65,000 BTU) 240VA/C Vents and Compass

Mechanical & Systems

Bronze Propellers and Rudder×2Stainless Steel Propeller Shafts×2Electronic Vessel Control SystemHydraulic Steering System with Trim TabsExhaust, WetV-drive Transmission×2

Other

316 Stainless Steel Fuel Tanks with Air Releases×2Trim Control PanelZinccsFuel Filters for Engines and Generator×3Fuel Lines USCG Type A-1Fuel Inlets Port and Starboard×2Fuel Stop Valve, ElectromagneticFuel Transfer System, Manual ValveWater Tank, Stainless Steel with Air ReleasesWater Inlet, Stainless SteelWater Pump 24V with FilterWater Heater 16 GAL/60LDockside/Shore Water ConnectionLevel IndicatorBlack Water Waste System with Odor Filter and Air ReleaseWaste Pump, ElectricDuel Lever Control PanelTrim Tab Control PanelFire System MonitorEngine Ignition Panel

Generator

Onan 15 kW

Communication

Steering Wheel, Exclusive GaleonSynchronized Twin Windscreen Wipers with Front Window Washing System and Defroster Outlets

Anchor & Windlass

Anchor RollerFiberglass Deck Hatch Self-Draining Chain LockerGalvanized Anchor with ChainElectric Anchor Winch with Helm Station

Bow Thruster

Bow Thruster, Electric

Stern Thruster

Stern Thruster, Electric
