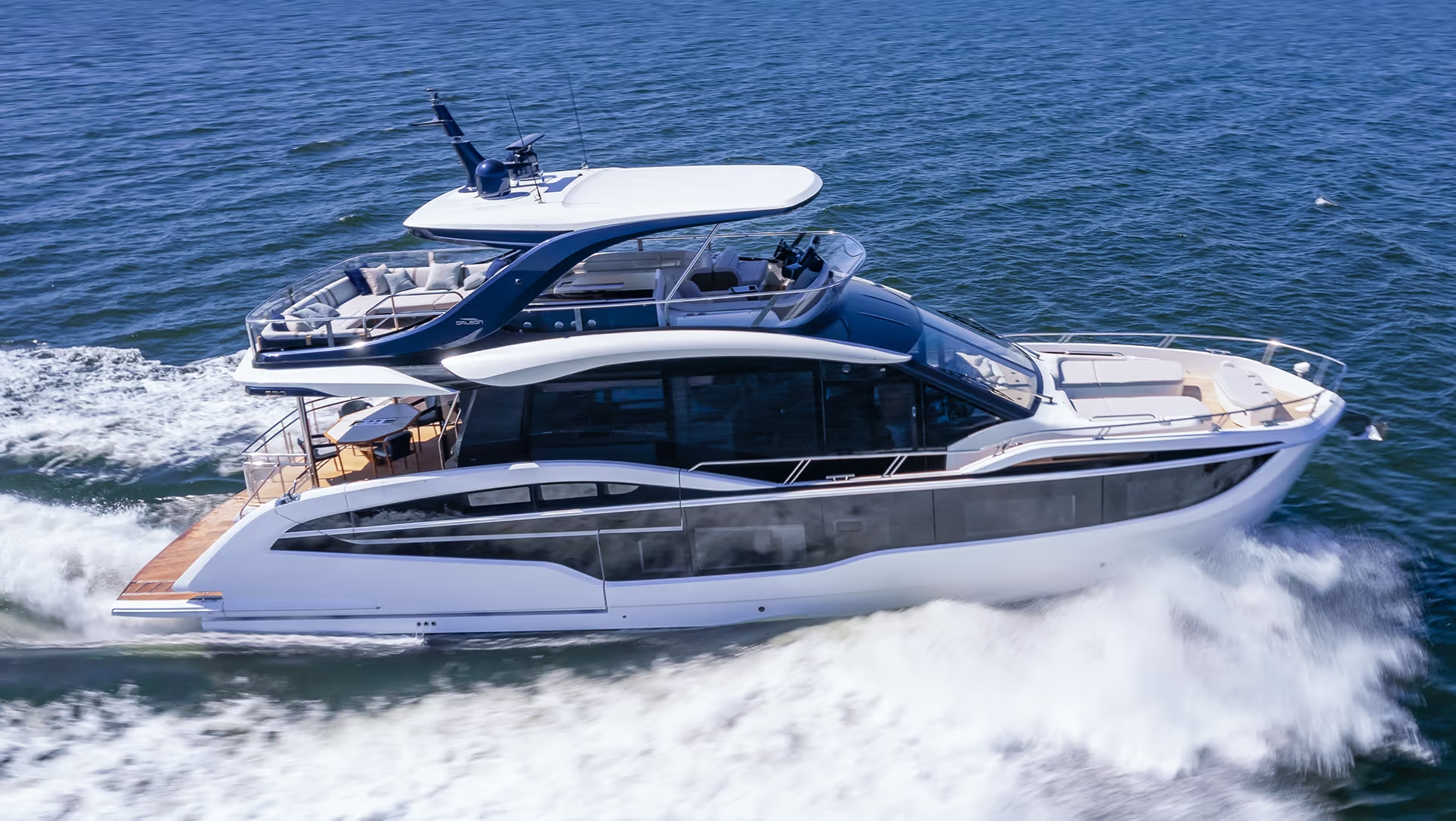

Galeon Yachts 620 FLY

Galeon Yachts

620 FLY

2017 – 2018

64.7ftLOA
6Guests
4Cabins
27ktsMax Kts

Specifications

Manufacturer Verified

65 ft

Length Overall

27 kts

Max Speed

3500 L

Fuel Capacity

4

Cabins

500 L

Fresh Water

Vessel Dimensions

WL64.7 ftLOA16.6 ftBeam3.2 ftDraft

Beam

16.6 ft

Draft

3.2 ft

Units:
Dimensions

Beam

16.6 ft

Draft

3.2 ft

Displacement

45.9 t

Performance

Max Speed

27 kts

Cruising Speed

23 kts

Propulsion

Engine Count

2

Engine Power

Twin Volvo Penta D13-1000 (1000 HP / 746 kW) or optional MAN Twin 1200HP (1200 HP / 882 kW)

Hull Material

Fiberglass

Superstructure

GRP

Accommodation

Guests

6

Cabins

4

Crew

2

Crew Cabins

1

Heads

3 guest, 1 crew

Tanks

Fuel Capacity

3500 L

Fresh Water

500 L

Black Water

210 L

Design Credits

Exterior Designer

Tony Castro Yacht Design

Interior Designer

Insitu & Partners

Naval Architect

Tony Castro Yacht Design

Deck Plans & Layouts

Deck plans for this model are not yet in our database.

Know this vessel? Help us build the knowledge base.

Propulsion & Systems

Volvo Penta D13-1000

Volvo Penta D13-1000

Twin engine configuration

SHAFTDIESELIMO Tier II, EU Stage II, EPA Tier 3, China I, China II
Displacement
12.8
Cylinders
6
MAN V8-1200

MAN V8-1200

Twin engine configuration

SHAFTDIESELIMO Tier II
Displacement
11.96
Cylinders
8

Navigation & Electronics

EmpireBus DigitalSwitching system EmpireBusRaymarine IMIS Integrated Management System with Raymarine chartplotterVolvo Volvo 7" digital EVC panelRaymarine Raymarine Chartplotter/EF 2x AxisXLRaymarine Raymarine VHF radio with AISRaymarine Raymarine AutopilotRaymarine Raymarine High Chirp sonarRaymarine Raymarine Evolution DBW autopilotRaymarine Raymarine Ray91 VHF antenna

Safety

Fire system monitor

Climate Control

Dometic Air Conditioning System Dometic Chilled Water 108000 BTU 240V

Mechanical & Systems

MAN 1200HP×2

Other

Hydraulic steering systemBose SoundTouch 120 sound system with soundbar and Acoustimax moduleWatermakerBilge pumps automatic/manual fire extinguishing systemElectric cooktop 240V two-burner inductionRefrigerator 12 ft³ (165 L) under counter with freezer compartmentTrim tab control system

Generator

Onan 29 kW

Stabilizer

Gyro stabilizer 1x Seakeeper 9

Anchor & Windlass

Electric anchor winch with helm station and foot switches

Bow Thruster

Electric bow thruster

Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
