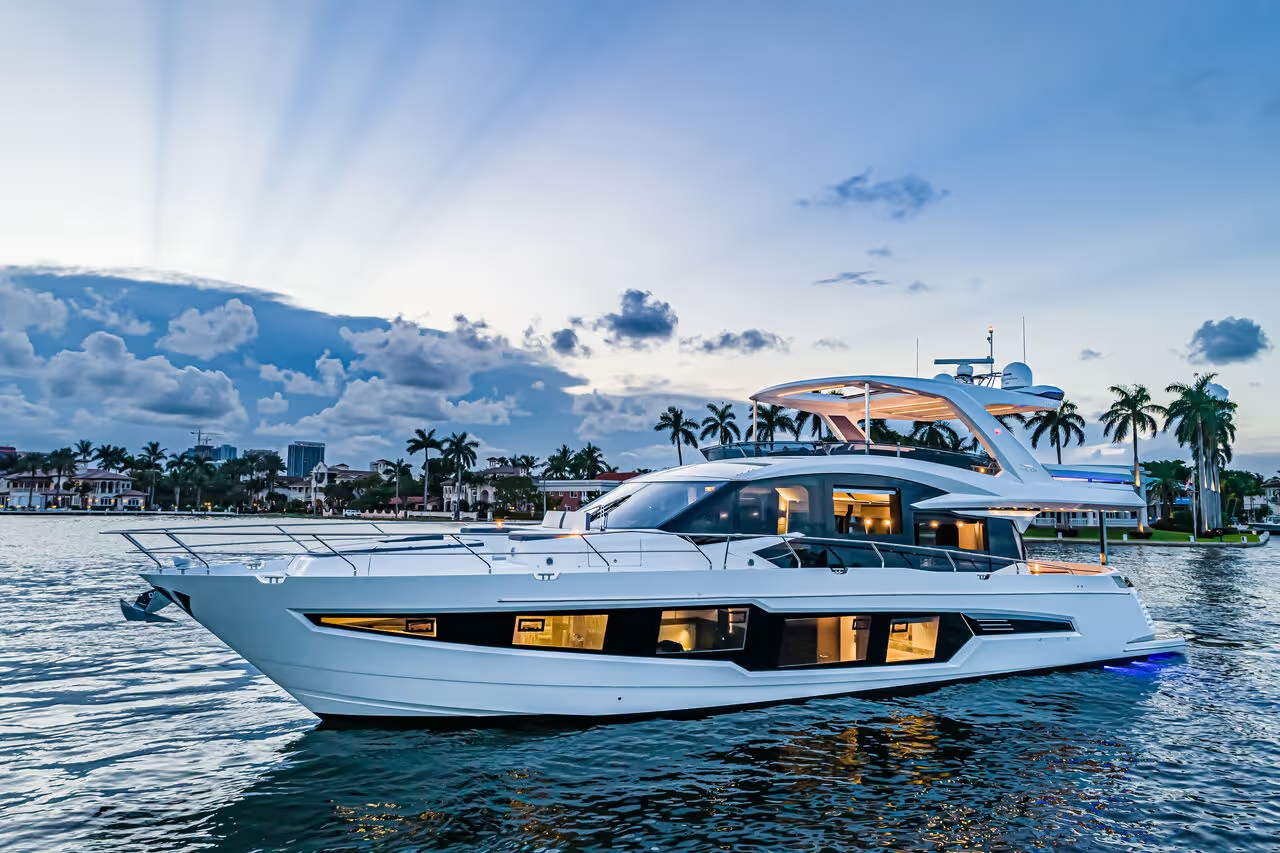

Galeon Yachts 680 FLY
14 photos

Galeon Yachts

680 FLY

2018 – Present

72.67ftLOA
16Guests
3Cabins
30ktsMax Kts

Specifications

Manufacturer Verified

73 ft

Length Overall

30 kts

Max Speed

3330 L

Fuel Capacity

3

Cabins

800 L

Fresh Water

Vessel Dimensions

WL72.7 ftLOA17.2 ftBeam4.7 ftDraft

Beam

17.2 ft

Draft

4.7 ft

Units:
Dimensions

Beam

17.2 ft

Draft

4.7 ft

Displacement

44.8 t

Performance

Max Speed

30 kts

Cruising Speed

28 kts

Range

500 nm

Range Note

10 knots

Propulsion

Engine Count

2

Engine Power

Twin MAN V8 TURBO 1200 HP

Hull Material

Fiberglass

Superstructure

GRP

Accommodation

Guests

16

Cabins

3

Crew

1

Crew Cabins

1

Heads

3 guest, 1 crew

Tanks

Fuel Capacity

3330 L

Fresh Water

800 L

Black Water

300 L

Design Credits

Exterior Designer

Tony Castro Yacht Design

Interior Designer

Galeon

Naval Architect

Tony Castro Yacht Design

Deck Plans & Layouts

1×

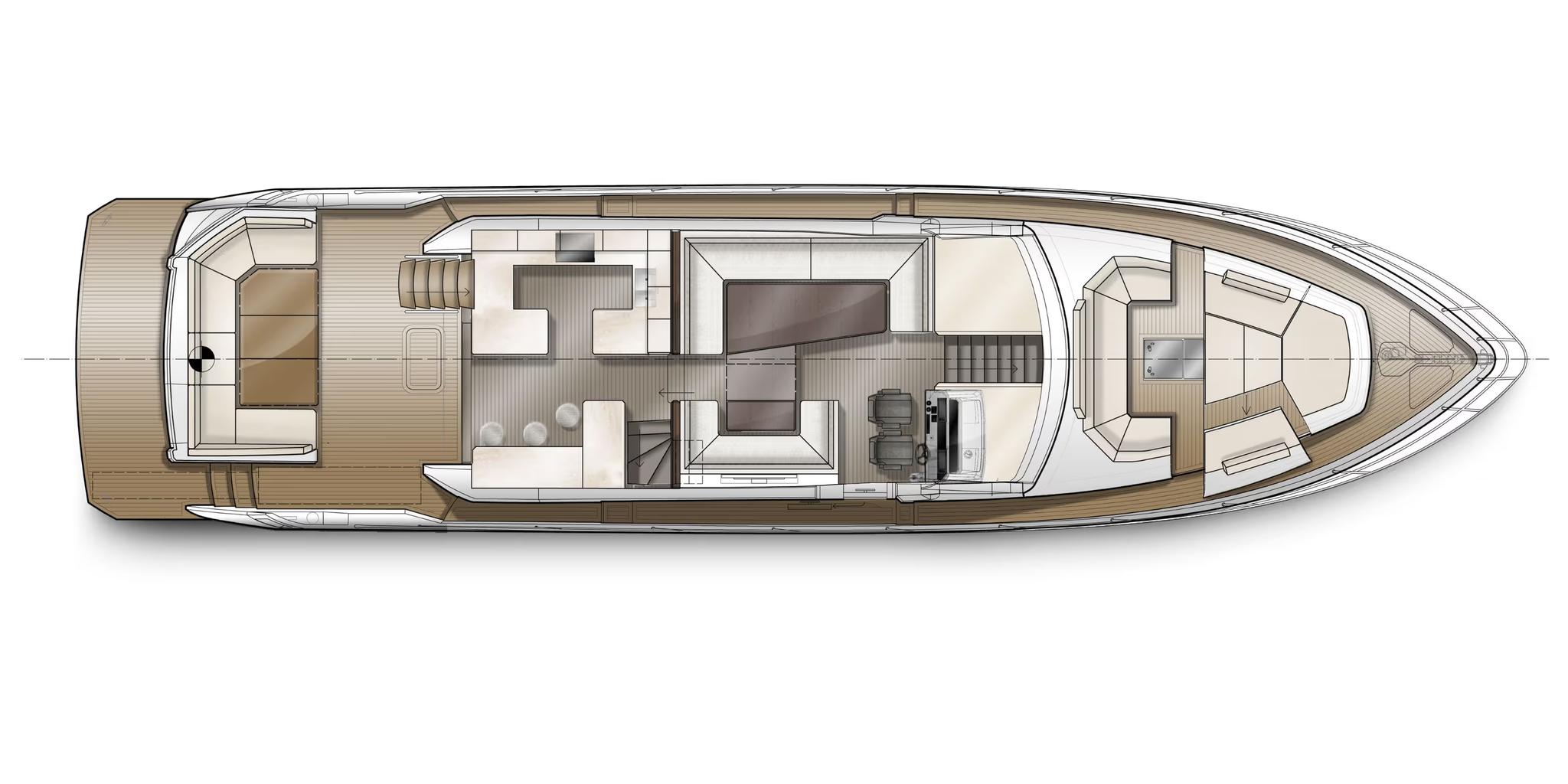

Deck plan

Propulsion & Systems

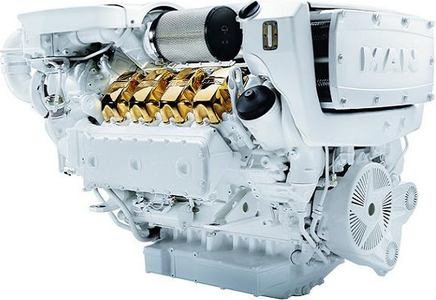

MAN V8-1200

MAN V8-1200

Twin engine configuration

SHAFTDIESELIMO Tier II
Displacement
11.96
Cylinders
8

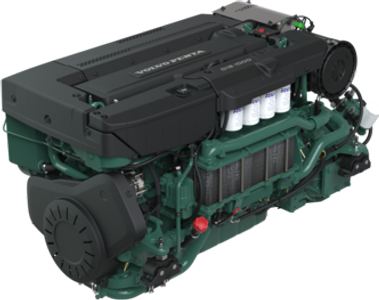

Volvo Penta D13-1000

Volvo Penta D13-1000

Twin engine configuration

SHAFTDIESELIMO Tier II, EU Stage II, EPA Tier 3, China I, China II
Displacement
12.8
Cylinders
6

Navigation & Electronics

Raymarine Raymarine autopilot with control units at main and flybridge helm stationsRaymarine Raymarine VHF radio with Automatic Identification System

Entertainment & AV

TV LED 32 inch with Blu-ray playerSound system, Bose SoundTouch with soundbar and Acoustimass module

Climate Control

Air Conditioning System, Dometic Chilled water (110,000 BTU) - 240V

Mechanical & Systems

MAN V8 TURBO 1200 HP

Other

Digital switching system, EmpireBusIntegrated Management Information System (IMIS) Raymarine

Generator

Diesel generator with sound shield

Watermaker

Watermaker

Stabilizer

Gyro stabilizer (Sea Keeper 16)

Anchor & Windlass

Electric anchor winch with helm station and foot switches

Bow Thruster

Bow thruster, electric

Stern Thruster

Stern thruster, electric with IP protection

Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
