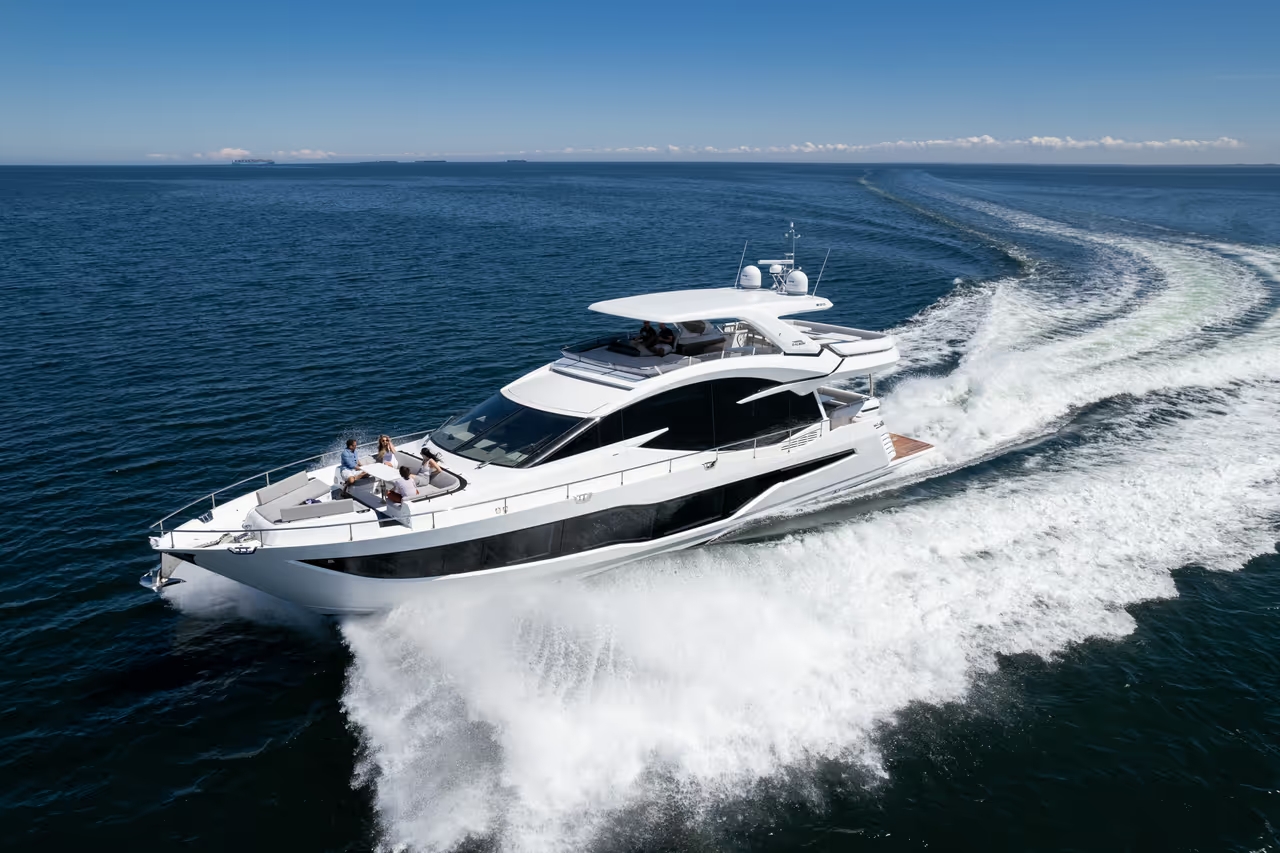

Galeon Yachts 800 FLY
15 photos

Galeon Yachts

800 FLY

2021 – Present

83.2ftLOA
8Guests
4Cabins
30ktsMax Kts

Specifications

Manufacturer Verified

83 ft

Length Overall

30 kts

Max Speed

5490 L

Fuel Capacity

4

Cabins

1800 L

Fresh Water

Vessel Dimensions

WL83.2 ftLOA19.0 ftBeam5.2 ftDraft

Beam

19.0 ft

Draft

5.2 ft

Units:
Dimensions

Beam

19.0 ft

Draft

5.2 ft

Displacement

70.1 t

Gross Tonnage

110 GT

Performance

Max Speed

30 kts

Cruising Speed

25 kts

Range

298 nm

Range Note

23.8 knots

Propulsion

Engine Count

2

Engine Power

Twin MTU 1920 HP (T-1920 HP = 1432 kW)

Hull Material

Fiberglass

Superstructure

GRP

Accommodation

Guests

8

Cabins

4

Cabin Breakdown

1 x Master 1 x VIP 2 x Twin convert

En-Suite Cabins

Yes

Crew

2

Crew Cabins

2

Heads

2 guest, 1 crew

Tanks

Fuel Capacity

5490 L

Fresh Water

1800 L

Black Water

511 L

Design Credits

Exterior Designer

Tony Castro Yacht Design

Interior Designer

Tony Castro Yacht Design

Naval Architect

Tony Castro Yacht Design

Deck Plans & Layouts

Deck plans for this model are not yet in our database.

Know this vessel? Help us build the knowledge base.

Propulsion & Systems

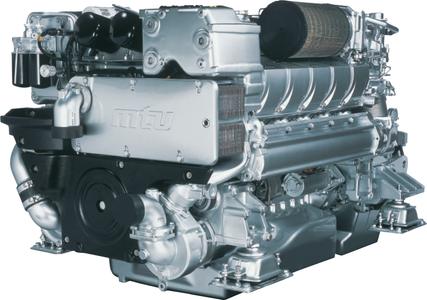

MTU 12V 2000 M84

MTU 12V 2000 M84

Twin engine configuration

SHAFTDIESELIMO Tier II/EPA Tier 2
Displacement
26.8
Cylinders
12
MTU 12V 2000 M94

MTU 12V 2000 M94

Twin engine configuration

SHAFTDIESELIMO Tier II
Displacement
19.2
Cylinders
12

Navigation & Electronics

Raymarine Raymarine Chartplotter Axiom 12Raymarine Raymarine AIS700 TransceiverRaymarine with 2x 270RS control head, EV2 sensor core, and EV2 cablingRaymarine Integrated Management and Information System (IMIS)Raymarine Raymarine VHF Ray91CompassExclusive Galeon

Safety

Carbon monoxide detectorFire system monitorAutomatic/manual fire extinguishing system

Entertainment & AV

Samsung SMART with Blu-ray playerBose SoundTouch 120 with soundbar and Acoustimass module

Galley & Appliances

Overhead240V two-burner induction with Corian shelf36" wide full height with freezer drawers

Climate Control

Domestic Chilled water (175,600 BTU) - 240V

Mechanical & Systems

MTU 1920 HP×2

Other

Underwater LED lights×12On flybridge optionalCablemaster100L/H optionalVector fin stabilization system

Generator

Onan 27 kW

Communication

Station instruments and controls

Anchor & Windlass

Electric anchor winch with helm station and foot switches

Bow Thruster

Hydraulic bow thruster

Stern Thruster

Hydraulic stern thruster

Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
